Modiewark Industrial DC80-Modiewark AC Kit
Modiewark Industrial DC80-Modiewark AC Kit $2,643.97. SAVE BIG with NO Sales or Local Tax and Free Shipping to any point in the 48 states.
- Imported from Australia manufacturer G.L. McGavin by Life Protectors LLC, the only USA authorized distributor. Please note that the customer is responsible for any duties, taxes, VATs and tariffs upon delivery.

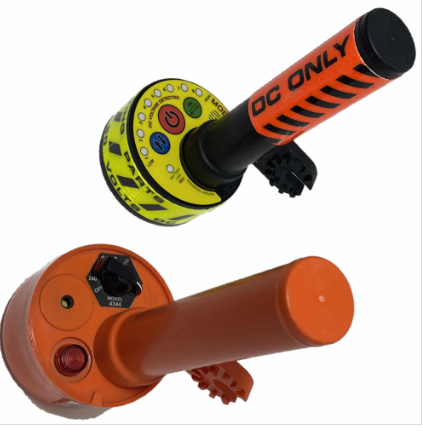

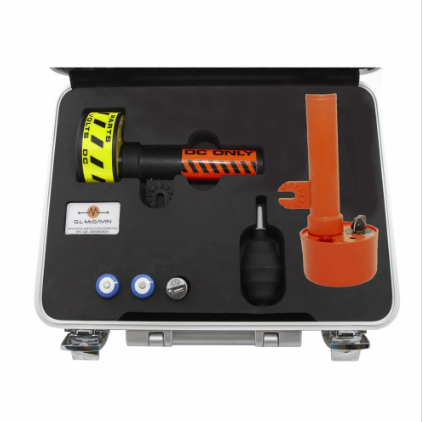

This kit includes.
· Industrial DC80 Tester
· Modiewark AC Tester
· Batteries
· Charger
· Metal Hard Case
- Not made in China or Taiwan as some others are. This product is manufactured in the highest quality G.L. McGavin-Modiewark facility in Australia, for over 50 years, to exacting specifications, that only makes voltage detectors and related high voltage products.
Q. Do non-touch DC testers even work?
The Fire Rescue DC50 and the multi-setting DC80 are the only true non-contact testers of Direct Current on the market today. Only rely on Modiewark.
Q. What about solar electricity?
Wherever batteries are involved, DC electricity is a threat. When a house with solar panels is on fire, both AC and DC testing is essential. Modiewark non-contact voltage detectors significantly reduce the risk of electrocution. Other scenarios include battery powered vehicles, trains, trams, planes, underground mining and power generation and storage.
Q. What is the range of voltage detected?
There is a Modiewark available for detecting AC/DC voltage from below 50 to over 1,000,000 volts.
Q. How can I be sure Modiewark works?
Modiewark invented the non-touch voltage tester over 40 years ago and is used to ensure the safety of personnel by large organisations around the world. We are continually improving and expanding our range of electronic voltage detectors.

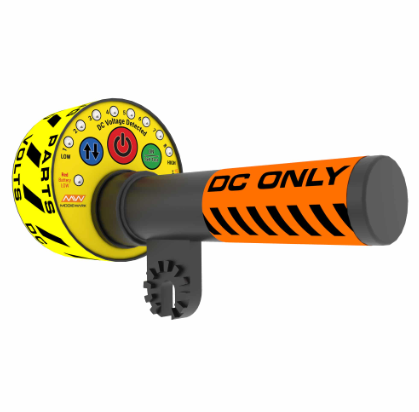

· DC80 Specifications
|
Size |
225mm Long |
|
Charge Time |
2 x batteries 7 Hours |
|
Voltage sensing range |
50 to ∞ VDC |
|
Light source |
8 high intensity Leds |
|
Sound source |
90 db piezo buzzer |
|
Operating temperature |
-20 to 65 C deg |
|
Water Resistance |
IEC IP6X (Safe when exposed to heavy rain). |
|
Weight |
750 g |
|
Power System |
Rechargeable Lithium-ion battery 1-day life in rigorous activity. |
|
Battery Life |
7 hours |
|
Cap Material |
ESD POM (Acetyl) Black |
|
Warranty |
1-Year |
|
Handle Material |
Glass filled polypropylene |
· These values are estimates within 90% for prototype specs.

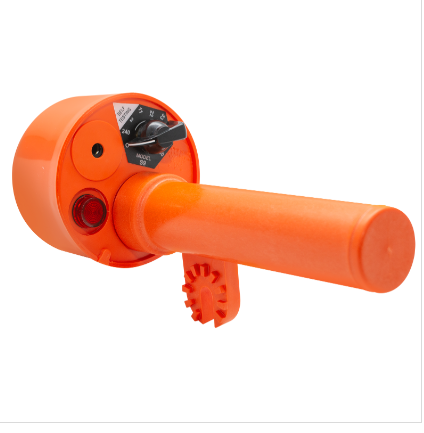

Modiewark AC
|
Voltage sending range |
50V AC to 750kV AC |
|
Light source |
Three High Intensity LEDs |
|
Sound source |
Electromagnetic piezo 85 dB @ 5cm (1.9″) |
|
Operating temperature |
-40 to 65c (-40 to 149F) |
|
IP range |
IP 63 |
|
Weight |
900g (without batteries) |
|
Dimensions |
Length: 230mm Width: 65.85mm (9″) |
Spout Tester
|
Voltage setting range |
3 x C size Alkaline |
|
Dimensions |
Length: 240mm + spout length |
Batteries
|
Battery type |
50V AC to 33kV |
|
Battery life |
(standard C size Alkaline) |
|
Model |
Selectable Voltages |
|
Model |
Selectable Voltages |
|
S4A |
OFF, 240V, 2kV, 6.6kV |
|
S4B |
OFF, 240V, 2kV, 6.6kV, 11kV |
|
S4C |
OFF, 240V, 2kV, 5kV, 11kV |
|
AIS |
OFF, 240V, 1kV, 6.6kV, 33kV |
|
VR |
OFF, 240V, 2.2kV, 6.6kV, 11kV, 22kV |
|
SECV |
OFF, 240V, 6.6kV, 11kV, 22kV, 66kV |
|
MWB |
OFF, 240V, 3.3kV, 6.6kV, 11kV, 22kV, 33kV |
|
RTC |
OFF, 240V, 5kV, 6.6kV, 11kV, 12.7kV, 22kV, 33kV |
|
S9 |
OFF, 240v, 2kV, 11kV, 22kV, 33kV, 66kV, 132kV, 330kV |
|
S9SA |
OFF, 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV |
|
CSA |
OFF, 240V, 4.2kV, 15kV, 25kV, 35kV, 69kV115kV, 230kV |
|
NZ |
OFF, 240V, 2kV, 11kV, 22kV, 33kV, 66kV, 110kV, 220kV |
|
SEAQ |
OFF, 240V, 3.3kV, 6.6kV, 11kV, 33kV, 66kV, 110kV, 275kV |
|
ETSA |
OFF, 240V, 3.3kV, 7.6kV, 11kV, 33kV, 66kV, 132kV, 275kV |
|
NM |
OFF, 240V, 1kV, 3.3kV6.6kV, 11kV, 22kV, 33kV |
|
NRCC |
OFF, 240V, 1kV, 3.3kV, 6.6kV, 11kV, 33kV, 66KV, 132kV |
|
WA1 |
OFF, 240V, 3.3kV, 6.6kV, 11kV, 22kV, 33kV, 66kV, 132kV |
|
S7 |
OFF, 240V, 2kV, 11kV, 22kV, 33kV, 66kV |
|
S7A |
OFF, 240V, 11kV, 33kV, 66kV, 132kV, 330kV |
|
CIG |
OFF, 240V, 415kV, 3.3kV, 6.6kV, 11kV, 22kV, 33kV, 66kV |
|
ABC |
OFF, 240V, 11kV, 33kV, 66kV, 132kV |
|
VRS |
OFF, 240V, 1kV, 2.2kV, 6.6kV, 11 kV, 22kV |
|
HEC |
OFF, 240V, 6.6kV, 11 kV, 22kV, 44kV, 88kV, 110kV, 220kV |
|
WRA |
OFF, 240V, 4.2kV, 15kV, 25KV, 35kV, 48kV, 69kV, 15kV, 25kV, 35kV |
|
RTC |
OFF, 240V, 5kV, 6.6kV, 11KV, 12.7kV, 22kV, 33kV |
|
VRS |
OFF, 240V, 1kV, 2.2kV, 6.6KV, 11kV, 22kV |
|
S10A |
OFF, 240V, BATT, 4.8kV, 7.2KV, 16kV, 2.4/4.2kV, 4.8/8.3kV, 8.0/13.8//7.2/12.5kV , 14.4/25//16/27.6kV, 44kV, 69kv |
|
S11A |
OFF, 240V, 2.4/4.2kV, 4.8/8.3kV, 7.2/12.5KV, 8/13.8kV, 14.4/25kV, 16/27.9kV, 44kV, 69kV, 115kv, 500kv |
|
CUSTOM |
Choose your own voltage combinations |
