RKI Instruments 72-0025-01 Gas Watch 3 CO with H2 compensated sensor, with wrist band clip

Original price $0
Original price $419.97 - Original price $419.97
Original price
Current price $419.97
$419.97 - $419.97
Current price $419.97

RKI Instruments 72-0025-01 Gas Watch 3 CO with H2 compensated sensor, with wrist band clip | No Tax | $419.97 |

No Sales or Local Tax Anywhere.  Free Shipping.  72-0025-01 GasWatch 3, with H2 compensated sensor, with alligator clip.

  • 5 versions to choose from CO, H2S, O2, CO/O2, or H2 compensated CO
  • 3-year warranty (2 years for O2 sensor)
  • Over 4,000 hours of operation
  • Light and compact “watch type” design
  • Easily worn in your “breathing zone”
  • Watch band or clip-on options
  • Alligator clip option with 360º rotation
  • Automatic backlight during alarm
  • Sturdy IP-66/68 rated design
  • Water, dust and radio frequency (RF) resistant
  • Non-compliance indicator

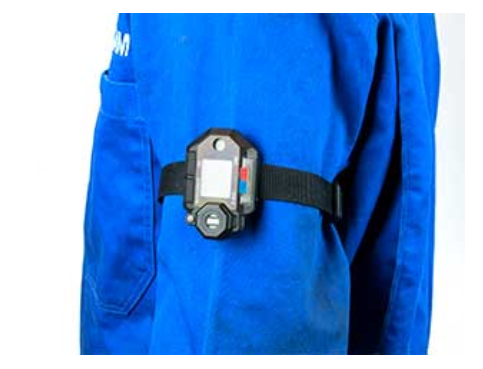

·         The GasWatch 3 is the world’s smallest and lightest single-gas monitor. Weighing just 1.6 ounces, its compact form affords great comfort and flexibility in how you choose to wear it. It can be worn on your wrist as a watch, or clipped into your breathing zone on your lapel, hard hat or other safety equipment with its alligator clip.

·         The 5 different GasWatch 3 models can protect you from oxygen deficiency [GW-3(O2)], exposure to carbon monoxide [GW-3(CO)] or exposure to hydrogen sulfide [GW-3(H2S)]. A hydrogen compensated model [GW-3(C-)] can protect those who work in steel mills, refineries or other environments where hydrogen is present from carbon monoxide exposure. The dual sensor model [GW-3(CX)] can simultaneously protect you from oxygen deficiency and carbon monoxide exposure.

·         A small, field-replaceable, coin-type lithium-ion battery gives the GasWatch 3 over 4,000 hours of continuous operation. The hydrogen compensated CO can operate up to 2,500 hours, and the dual sensor CO/O2 model will get up to 2,000 hours of continuous operation.

·         The great battery life coupled with a 3-year warranty* gives the GasWatch 3 tremendous value and a low cost of ownership.

Model

GW-3 (HS)
Hydrogen Sulfide

GW-3 (CO)
Carbon Monoxide

GW-3 (C-)
H2 Compensated CO

GW-3 (CX) (Dual Sensor)

GX-3 (O2)
Oxygen

Carbon Monoxide

Oxygen

Detection
Principle

EC

Dual EC

Galvanic Cell

Detection Range
(Increments)

0 ~ 30 ppm (0.1)
30 ~ 100 ppm (1)

0 ~ 300 ppm (1)

0 ~ 25.0% Vol. (0.1)

Accuracy
Statement

± 5% of reading
or ± 2 ppm H2S
(whichever is greater)

± 5% of reading
or ± 5 ppm CO
(whichever is greater)

± 5% of reading
or ± 2 ppm CO

± 5% of reading
or ± 5 ppm CO
(whichever is greater)

± 0.5% O2

Service Range

100 ~ 200 ppm (1)

310 ~ 2,000 ppm (10)

25 ~ 40.0% Vol. (0.1)

Alarm Setpoints

1st: 5.0 ppm
2nd: 30.0 ppm
3rd: 100.0 ppm
TWA: 1.0 ppm
STEL: 5.0 ppm
OVER: 200.0 ppm

1st: 25 ppm
2nd: 50 ppm
3rd: 1200 ppm
TWA: 25 ppm
STEL: 200 ppm
OVER: 2,000 ppm

L: 19.5% Vol.
LL: 18.0% Vol.
H: 23.5% Vol.
OVER: 40.0% Vol.

Operating Temperature

-20 °C to +50 °C (no sudden changes)
(Approx. 15-minute temporary use environment: -20 °C to +60 °C)
[no sudden changes]

-20 °C to +50 °C
(no sudden changes)

Humidity Range

10 to 90 %RH (no condensation)
(Approx. 15-minute temporary use environment: 0 to 95 %RH)
[no condensation]

10 to 90 %RH
(no condensation)

Continuous
Operating Time

Approx. 4,000 hours

Approx. 2,500 hours

Approx. 2,000 hours

Approx. 4,000 hours

Sampling Method

Diffusion Type

Types of Alarm

Gas alarms: Three-step alarms, STEL alarm, TWA alarm, OVER alarm

Fault alarms: Sensor connection / disconnection, low battery level, calibration failure, clock abnormality, system abnormality

Alarm Indications

Auto-reset or self latching

Lamp flashing, intermittent buzzer sounding, gas concentration readout blinking, vibration

Power Source

CR2450 coin-type lithium ion battery

Case Material

Intrisically safe explosion-proof construction (Ex ia IIC T4 Ga) , IP 66/68 (6.6ft, 1h) (2m, 1h)

Approvals

ATEX, IECEx, CSA

Dimension & Weight

2.5″ W x 1.6″ H x .86″ D (Approx 63 mm W x 42mm H x 22mm D) , 1.6 ounces (approx. 45g)

Functions

Data logger, vibration, STEL alarm, TWA alarm, quick calibration, peak value display, temperature display

Standard
Accessories

CR2450 coin-type lithium-ion battery, Spring pins (used to mount accessories on to the rear face),
Watch band, Alligator clip

Optional
Accessories

Heat-resistant case, Dust filter, CF-1821 filter (for CO sensor), CF-A13i-1 humidity control filter (for H2S sensor), Calibration adapter

Ships directly to your door by RKI.

Returns, other than for warranty, to RKI subject to 25% restocking fee.



Refineries

  • Petrochemical facilities
  • Sewage treatment plants
  • Fire departments
  • Chemical plants
  • Tunnels
  • Mines
  • Hazardous waste sites
