Elmridge E900 iEvac Smoke Hood / Fire Escape Mask No Tax
Elmridge E900 $225.00 No Sales or Local Tax Anywhere. Free Shipping. See Important Note Below on pricing. iEvac Smoke Hood / Fire Escape Mask In Stock. Made in the USA. Former part number was EDP-900.
Important Note: Elmridge Protection, of which we have been an authorized distributor for many years, enforces on all distributors what is called MAP which is Minimum Advertised Price. All distributors must list on their websites and all forms of advertising, the MAP price, which for this product is $225.00 each, or a higher price, but we can negotiate much lower prices for volume orders. Life Protectors LLC only sells Elmridge products in volume of 10 or more. Our target customers are municipalities, US government, fire, police, first responders, industry. We offer large discounts for volume orders. Contact us via email at steve@lifeprotectors.com, sales.lifeprotectorsinc@gmail.com, or call us at 800-485-1338 or 406-270-8879. You won't be disappointed in our discounted prices, no sales tax anywhere, and top customer service. In business now for 46 years.
The iEvac® is the only Smoke/Fire Hood certified to the American National Standard.

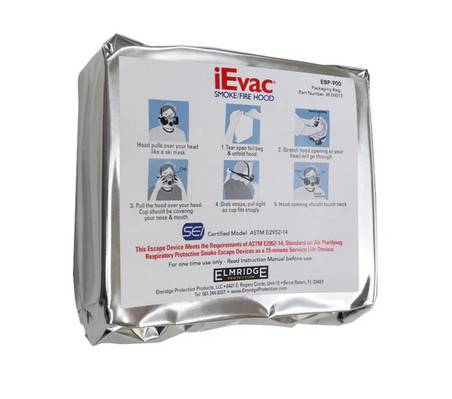

The iEvac® comes vacuum-packed in its foil bag.
Protects against
- Carbon Monoxide
- Additional Toxic Gases: smoke, hydrogen cyanide, chlorine, ammonia, sulfur dioxide, CS, CN, hydrogen sulfide, OC and more
- Harmful Particulates: soot, fumes, aerosols, and others
- Contains a Pleated HEPA Filter that removes sub-micron particles such as anthrax, smallpox, and radioactive particles
- Life-Threatening Physical Hazards: flammability and radiant heat
Features
- Maintenance-free
- At 9.5 in. (240mm) can withstand up to 1700°F (927°C) in radiant heat
- Twin cartridges for easier breathing
- Improved field of view than with single cartridge in front
- Hood is a clear material resulting in an unobstructed field of view
- High visibility reflective strips for easy recognition
- Highest level of protection maintained by silicone neck dam
- Protects lungs, head, eyes, and face
- Can be used with eyeglasses, beards, and long hair
- Packaged in puncture- and- water-proof laminate barrier
- Quick and easy donning
- Latex-free
- One universal size
- Due to the American certification, this product cannot be returned.
· Specifications
· Weight of iEvac® in ready to use configuration:
1.4 lbs. (635 grams)
· Size of iEvac® folded in vacuum sealed foil bag:
Height: 5 1/2 in (14 cm)
Width: 5 1/2 in (14 cm)
Depth: 4 3/4 in (12 cm)
· Shelf Life
5 1/2 years from date of manufacture. For one-time use only.
Tested and Certified to American Standard: Physical Properties
|
Challenge |
Test Condition |
Duration |
Result |
|
Radiant heat |
Within 9.5 inches (240 mm) of heating panel between 980 and 1700°F (527 and 927°C) |
15 secs repeated |
pass |
|
Flammability |
9.8 inches (250 mm) away from a burner flame of 1475°F (800°C) |
One rotation |
pass |
|
Molten drip |
Molten polypropylene rod drip |
Each location |
pass |
|
Inhalation temperature |
CO at 77°F (25°C) and 87%RH |
15 mins |
pass |
|
Fogging |
Read eye chart from 20 feet (6.1 meters) at the 20/100 line |
5 mins |
pass |
|
Field of vision |
Apertometer headform |
viewing |
pass |
|
Light transmission |
Haze of vision area |
left and right |
pass |
|
Temperature variation |
32°F (0°C) followed by 158°F (70°C) |
24 hours each |
pass |
|
Pressure variation |
Ambient to 4.4 psi (300 mbar) below |
1,000 cycles |
pass |
|
Vibration |
0.75 inches (19 mm) at 100 rpm |
10,000 cycles |
pass |
|
Corrosion |
Salt spray at 95°F (35°C) then 72°F (22°C ) at 50% RH |
48 hours each |
pass |
|
Puncture and tear |
3.5 oz (100 grams) striker dropped from 4 inches (100 mm) |
Ready to use |
pass |
|
Water leakage |
Immerse in water at 160°F (70°C) to depth of 24 inches |
5 mins |
pass |
Tested and Certified to American Standard: Hood Performance Tests
|
Function |
Test Condition |
Duration |
Requirement |
Result |
|
Speed of donning |
Remove from pack and wear properly |
Less than 30 secs |
< 30 secs |
pass |
|
Total inward leakage |
Test subjects performing standard exercises |
2.5 mins |
< 2% |
<0.01% |
|
Ocular leakage |
Test subjects performing standard exercises |
2.5 mins |
< 20% |
<0.1% |
|
Carbon dioxide build-up |
Breathing machine |
25 cycles per min |
< 2.5% |
< 1.7% |
|
Breathing resistance |
Probed headform with breathing machine |
30 cycles |
-3.2 in (-81.5 mm) +1.2 in (+30.6 mm) |
pass |
|
Soot particulate |
Inhalation breathing resistance with 200 mg/m3 soot |
5 mins |
< 8 in (< 204 mm) |
pass |
|
Soot particulate |
Exhalation breathing resistance with 200 mg/m3 soot |
5 mins |
< 6 in (< 153 mm) |
pass |
Tested and Certified to American Standard: Gas and Particulate Tests
|
Challenge |
Symbol |
Type |
Concentration ppm |
Requirement |
Result |
|
Carbon monoxide |
CO |
Hazardous combustion by-product |
3,000 |
15 mins |
> 45 mins |
|
Carbon monoxide |
CO |
Hazardous combustion by-product |
5,000 |
15 mins |
> 46 mins |
|
Hydrogen cyanide |
HCN |
Hazardous combustion by-product |
400 |
15 mins |
> 90 mins |
|
Hydrogen chloride |
HCl |
Acid gas toxic industrial chemical |
1,000 |
15 mins |
> 70 mins |
|
Sulfur dioxide |
SO2 |
Acid gas toxic industrial chemical |
100 |
15 mins |
> 70 mins |
|
Cyclohexane |
C6H12 |
Organic vapor toxic industrial chemical |
500 |
15 mins |
> 41 mins |
|
Acrolein |
C3H4O |
Organic vapor toxic industrial chemical |
100 |
15 mins |
> 65 mins |
|
Dioctyl phthalate |
DOP |
Particulate aerosol 0.185 micron |
200 mg/m3 |
>95% |
> 99.996% |
Additional Gas and Particulate Tests
|
Challenge |
Symbol |
Type |
Concentration ppm |
Requirement |
Result |
|
Carbon monoxide |
CO |
Hazardous combustion by-product |
10,000 |
15 mins |
> 30 mins |
|
Dioctyl phthalate |
DOP |
HEPA filtration test for particulates and aerosols |
200 mg/m3 |
> 99.97% |
> 99.996% |
|
Ammonia |
NH3 |
Toxic industrial gas |
1,250 |
15 mins |
> 60 mins |
|
Formaldehyde |
HCHO |
Toxic industrial gas |
250 |
15 mins |
> 60 mins |
|
Phosgene |
COCl2 |
Toxic industrial gas |
125 |
15 mins |
> 60 mins |
|
Phosphine |
PH3 |
Toxic industrial gas |
150 |
15 mins |
> 60 mins |
|
Chlorine |
Cl2 |
Toxic industrial gas |
200 |
15 mins |
> 60 mins |
|
DMMP |
DMMP |
Simulant for sarin nerve gas |
1,000 |
15 mins |
> 60 mins |
|
Tear Gas |
CS |
tear gas |
3 |
>> 8 hours |
> 8 hours |
|
Tear Gas |
CN |
tear gas |
16 |
>> 8 hours |
> 8 hours |
|
Hydrogen sulfide |
H2S |
Acid gas toxic industrial chemical |
1,000 |
15 mins |
> 600 mins |
|
Hydrogen sulfide |
H2S |
Acid gas toxic industrial chemical |
5,000 |
15 mins |
> 85 mins |
|
Hydrogen sulfide |
H2S |
Acid gas toxic industrial chemical |
10,000 |
15 mins |
> 40 mins |
|
Hydrogen sulfide |
H2S |
Acid gas toxic industrial chemical |
20,000 |
15 mins |
> 20 mins |
|

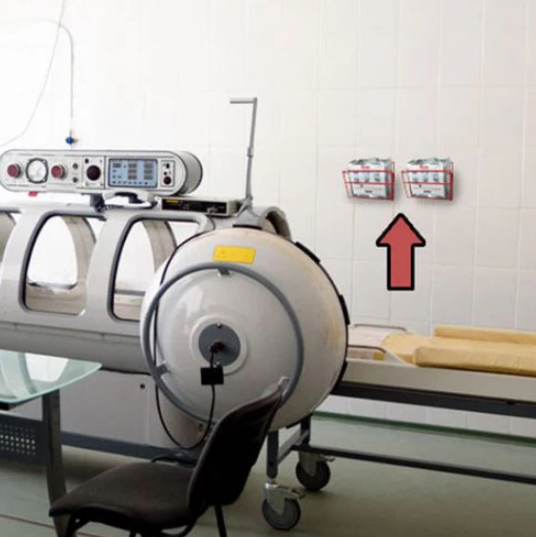

NFPA 99 requires all hyperbaric chambers to have a smoke hood. The iEvac has been the smoke hood/fire mask of choice and has been implemented in thousands of hyperbaric chambers nationwide.
|
|
|
|
|
|
Authorized worldwide Elmridge distributor in business 46 years.
