Drager R59560 X-plore 8700 Applic. Set, Premium (EX)

Drager R59560  $2,867.97 No State or Local Sales Tax Anywhere!  X-plore 8700 Applic. Set, Premium (EX)

Life Protectors LLC is an authorized worldwide Drager distributor

Ships brand new in a Drager sealed carton directly to you from Drager.

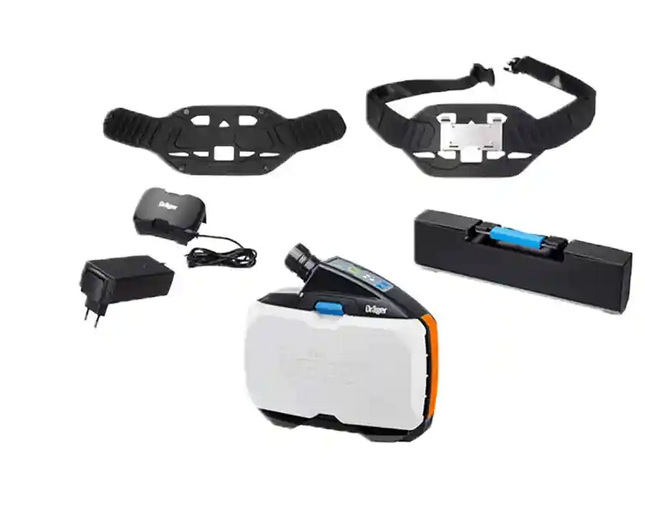

The Dräger Application set X-plore 8700 – Premium Ex combines Dräger products with the highest safety requirements for respiratory protection in one set. The set consists of a blower unit (Ex), a long-term battery (Ex), a standard charger (Ex), a belt and comfort pads - each from the X-plore 8000 series and the special Ex series 8700. The premium set is in the particularly demanding Can be used in Ex zones 1, 2, 21 and 22. The explosion protection is achieved through an intrinsically safe design and no additional accessories, such as extra parts or similar, are necessary. Dräger blower filter devices are used for effective and reliable protection against harmful vapors, particles and gases. The air supply of the blower unit (Ex) is optimally adjusted, avoids unpleasant eye irritation under the breathing hood and minimizes breathing resistance. This means the user can concentrate on immediate work. With the help of electronic monitoring, the device functions of the blower unit can be easily viewed. Even the temperature is monitored electronically. The redundant safety circuit monitors the correct functionality of the Respirator (Ex).

Other advanced technologies built into the premium set include automatic breathing connection type recognition and additional manual regulation of the volume flow in three stages. An automatic filter detection recognizes the filter used and indicates the saturation of the particle filter. It is not possible to use the blower filter device without a filter as an optical sensor indicates this in advance. The application set (Ex) is very robustly constructed, so dust or water jets cannot penetrate in accordance with IP65. The robust and antistatic housing material prevents electrostatic charges, and the ESD protection is also very difficult to damage. The housing of the blower unit can also be easily cleaned. The Dräger application set X-plore 8700 – Premium (Ex) is used in a wide variety of situations and areas. For example, in the waste disposal industry, in trades, in road and civil engineering, in building cleaning or in explosive work areas of chemical and petrochemical companies. The Dräger items in the X-plore 8000 series, including the X-plore 8500 and 8700) are compatible with each other. Depending on your needs, the configurator can be used to put together an individual respiratory protective device of the highest quality for your area of application. A large selection of carrying systems, open or closed breathing connections, filters and other respiratory protective equipment accessories are available.

• Blower filter device for effective protection against gases, vapors and particles with electronic monitoring of the device functions
• The device automatically detects the type of breathing connection used and adjusts the volume flow range accordingly. In addition, manual regulation of the volume flow in three stages is possible. An automatic filter detection recognizes the filter used and indicates the saturation of the particle filter
• A fan filter system can be put together individually using the configurator. A range of user-friendly standard and special carrying systems as well as a large selection of open and closed breathing connections (half/full mask or hood/helmet/protective visor) and filters are available for a variety of applications
• Extremely durable construction complemented by rubber protectors and protection against dust and water jets in accordance with IP65
• Advanced carrying system ensures optimal weight distribution
• Optimal air supply reduces unpleasant eye irritation
• Three alarms: visual, audible and vibration alarm
• Advanced sensor technology detects the connected breathing port and automatically selects the appropriate minimum airflow
• An optical sensor prevents the device from being used without a filter inserted
• Fail-safe hose connection and consistent color codes for all interchangeable elements
• Set consisting of blower filter device EX, long-term battery EX, standard charger, standard belt and comfort padding
• A filter, breathing hose and headpiece are also required for commissioning
• Explosion protection through intrinsically safe construction; Compared to the competition, no accessories (covers or similar) are required to achieve explosion protection
• Ex-approved, anti-static housing materials prevent charging and are significantly more robust than anti-static housing coatings, which can be damaged
• Fast and patented overcurrent shutdown of the battery
• Electronic temperature monitoring
• Redundant safety circuits
• Can be used for Ex zones 1, 2, 21 and 22
• Compatible with most existing system components
