Modiewark Industrial DC80-AC30 Dual Electrical Kit
Modiewark Industrial DC80-AC30 Dual Electrical Kit $2,059.97 SAVE BIG with NO Sales or Local Tax and Free Shipping to any point in the 48 states.

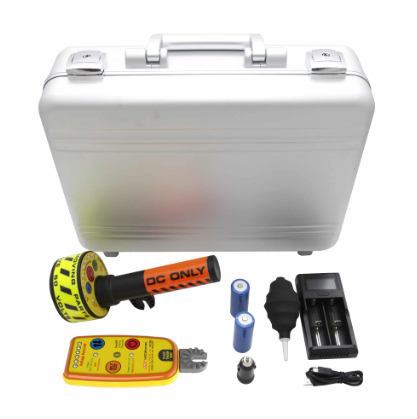

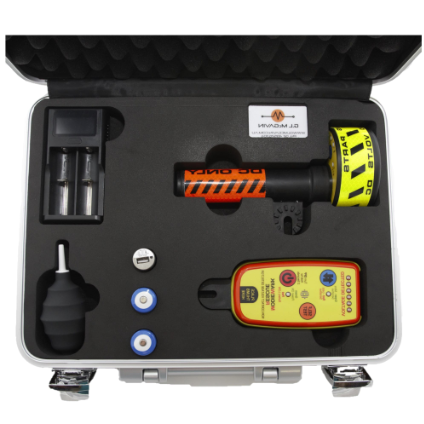

Included:
· Industrial DC80 non-contact tester
· Fire and Rescue AC30 non-contact tester
· DC charger
· 4 x 26650 batteries
· 8 x AAA Batteries
· Air pump
· Car charger
· Padded hard metal carry case

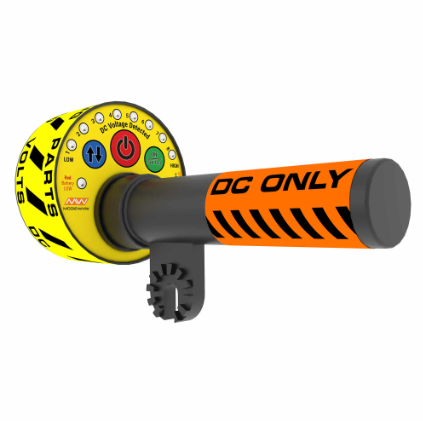

Specifically designed for direct current detection in industrial environments, the non-contact DC80 is a global breakthrough.
It is the world’s first genuine DC non-touch voltage tester. Safe, fast and reliable.
Simply point the tester at a potentially live DC source to determine if there is voltage present. The sound it makes will alert you to danger without any need for physical contact. It has 8 adjustable sensitivity settings, meaning the operator can adjust it to voltages from 50 volts to over 1,000,000 volts. The Modiewark is the safest choice, in any environmental disaster or accident. Modiewark is the only product in the world to offer a truly non-touch DC tester you can rely on.
The DC80 is a must have when working with DC power on:
· Trains and trams
· Sub-stations
· Wind-turbines
· Solar generation equipment
· Mining equipment

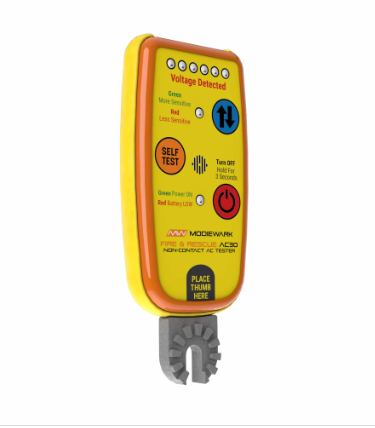

Modiewark AC Non-contact AC Voltage Tester
Designed for all industries that use AC electricity, the Modiewark AC comes in an array of voltage settings for any environment… from 50 to over a million volts
The Modiewark has been used by industry professionals since the early 70’s for live or dead voltage determination of overhead power lines and underground power at URD test points.
The Modiewark AC has two main functions, firstly as a proximity device to determine live or dead situations and then as a touch device to verify the tester has physically reached the AC field around designated mains under test.
The unique nature of the sensor plate within the unit allows for directional checks such as checking low voltage when high voltage is nearby. Induced voltages on isolated conductors are checked by increasing the Modiewark’s sensitivity.
The Modiewark AC is a must have when:
· Identifying live conductors
· Fault finding in flexible cables
· Checking equipment grounding
· Neon lighting servicing
· Tracking live wires
· Phasing conductors
· High frequency radiation detection
- Life Protectors LLC is an authorized worldwide G.L. McGavin distributor of Modiewark products.
- Compare this superior product to Salisbury, Honeywell, Klein, Triplett, Certified, AEMC
· AC30 Specifications
Voltage sensing range |
20 volts AC to 500 K volts AC |
Light source |
High intensity LED |
Sound Source |
Piezo 4000KHz 90 dB @ 10cm (3.937’) |
Operating temperature |
-20 to 65˚C (14 to 149°F) |
IP rating |
IP 66 (Testing not Completed) |
Weight (no Batteries) |
140g (4.93 oz) |
Dimensions |
L 40 mm (5.51’) x W 73 mm (2.87’) x H 23 mm (0.9’) |
Battery |
4* AAA Alkaline / Lithium |
Battery life (AAA Alkaline) |
ON (no alarm) 30+ Hours |
Battery life (AAA Lithium) |
ON (no alarm) 40+ Hours |
Shock Proof |
Rubber mount around case |
Self test |
Independent Built in |
Belt clip (option) |
Attached to rear of case (Customer Request) |
Range detection |
LED Indication Weak Signal to Strong signal. |
Voltage range |
Two Settings Less sensitive and More sensitive. |
Large buttons |
15mmØ for Glove operations |
Secure battery housing |
(fours crews) Tool Access |
Custom colours |
On Customer Request |
Custom decals |
On Customer Request |
· These values are estimates within 90% for prototype specs.
· DC80 Specifications
Size |
225mm Long |
Charge Time |
2 x batteries 7 Hours |
Voltage sensing range |
50 to ∞ VDC |
Light source |
8 high intensity Leds |
Sound source |
90 db piezo buzzer |
Operating temperature |
-20 to 65 C deg |
Water Resistance |
IEC IP6X (Safe when exposed to heavy rain). |
Weight |
750 g |
Power System |
Rechargeable Lithium-ion battery 1-day life in rigorous activity. |
Battery Life |
7 hours |
Cap Material |
ESD POM (Acetyl) Black |
Warranty |
1-Year |
Handle Material |
Glass filled polypropylene |
· These values are estimates within 90% for prototype specs.
·
- Life Protectors LLC is an authorized worldwide G.L. McGavin distributor of Modiewark products.
- Compare this superior product to Salisbury, Honeywell, Klein, Triplett, Certified, AEMC
GL McGavin Pty. Ltd. Is a company that was formed in Sydney Australia in 1968, out of a need to protect electrical workers from being injured. With its state of the art product the first of many models of the Modiewark non-contact voltage detector were designed. The Australian power industry gratefully accepted this tester as a life saving device, implementing a national roll out in the early 1970’s.
From this point the Modiewark adapted it’s self to the needs of the industry, improving itself by providing self testing capabilities, voltage selectors to suit each application and accessories to perform substation spout testing and phase compatibility testing.
In 2004 the Morris family Darrell & Norma Morris (owner directors) and their sons Ashley & Linsey Morris (directors) of the Morris Group, took ownership of the company and by consolidating its operation in Newcastle New South Wales, Australia, developed long overdue improvements in its manufacturing techniques. Providing in house quality control on all construction processes, making the product a safer and more reliable test instrument. With the aid of their experience staff the product improved to include phase identification, spout testing application and water resistance devices.
In 2007 a team association with a local engineer and developed a new product line of Modiewarks, The Modiewark Mini Testers providing a miniature and user friendly product allowing us to keep pace with the changing industry. Rescue departments in New South Wales Australia, took up the new rescue tester, providing their staff with a safe approach procedure. The Mini SWER and Pole tester taken in hand by Country Energy for the testing of SWER(single wire earth return) and the application of pole leakage detection which costs the industry many thousands of dollars per year. The MR tester (Meter Reader) was developed to ensure the safety of the meter readers who frequently come across live domestic power boxes.
To ensure quality control with this safety device Pritchard Electronics became an acquisition of the Morris group providing improved technologies and in house quality control.
With new technology on the way the goal of GL McGavin and its staff is to keep pace with the current industry standards and provide a better solution for electrical safety in the future. As one of the oldest and most reliable tester on the market today the GL McGavin Modiewark range of testers will always assist the electrical industry in all electrical hazard safety applications.
