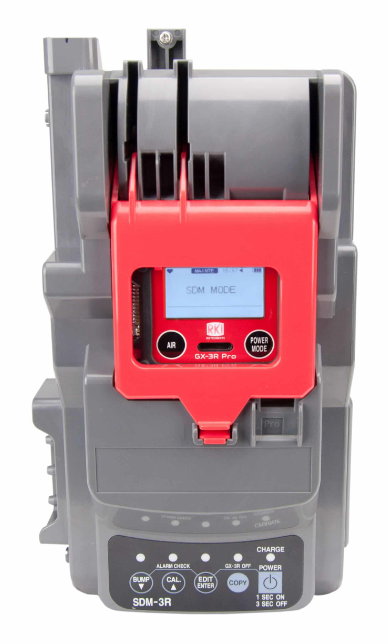

RKI Instruments 81-SDM3R304 SDM-3R calibration station

RKI Instruments 81-SDM3R304 $1,838.97 No State or Local Sales Tax Anywhere! SDM-3R calibration station

Docking Stations with 3 cylinder inputs

With 3 solenoid, demand flow regulator, 34AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing

Stand Alone Use (no PC required)

Compatible with both GX-3R and GX-3R Pro

Automatically charge, bump test, and/or calibrate

Auto on/off of gas detector

3 separate gas inputs

Included in the package are essential components such as a solenoid, demand flow regulator, 58AL cylinder with H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing. Designed for stand-alone use without a PC, this system is compatible with both the GX-3R and GX-3R Pro models, allowing for automatic charging, bump testing, and calibration with convenient auto on/off functionality for the gas detector and support for three separate gas inputs. Additionally, multiple modules—up to ten—can share one set of calibration equipment, while bump test, calibration, and alarm check records can be saved to a USB flash drive, computer, or network. The included PC software enables users to view and archive bump test, calibration records, and event data for efficient record-keeping and management.

Multiple modules (10 max) can use one set of

calibration equipment

Save Bump Test, Calibration, and Alarm Check

records to USB flash drive, computer, or network

Includes PC software for viewing/archiving bump

test, calibration records, and event data

PC-Controlled Use

Multiple modules connected to a PC (10 max)

Automatic calibration/bump test option

Configure GX-3R (Pro) parameters

Archive Bump Test, Calibration, and Alarm Check

Archive data to network location

Software controlled data retrieval

Windows 7, 8, and 10 compatible

Stand Alone Use

The SDM-3R is a versatile maintenance tool that automates the service of a GX-3R (Pro) portable gas monitor.

This docking station can be used as a stand alone device for charging, calibration and bump testing, with all

records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

PC-Controlled Use

Automate how you manage and service GX-3R (Pro) instruments by connecting the SDM-3R to a computer with

a USB cable. With the SDM Docking Station controller software, you can simultaneously calibrate, bump test,

alarm check, archive data, or charge up to ten instruments. You can also download the datalogging history from

each instrument into one easy to manage location. SDM-3R stations can be manifolded together to reduce the

number of demand flow regulators gas cylinders required.

Input Power AC Adapter with 100 - 240 VAC, 47-63 Hz,

0.4A input and 5.99 VDC, 2A output provided as

standard.

Environmental Conditions For Indoor Use Only

0° C to 40° C, below 95% Relative Humidity,

Non-Condensing

Applicable Instruments GX-3R and GX-3R Pro

Maximum Number of

Records Saved

Stand Alone: 200 calibrations, or 214 bump test, or

469 alarm check records

PC program Controlled: Unlimited records

5 Ports 3 Calibration gas, 1 fresh air and 1 exhaust

Standard Accessories • AC Adapter

USB Flash Drive

Inlet Air Filter

10 Foot Long Exhaust Tube

One 3 Foot Long Tube for GAS Fitting

USB Cable, Type A to Type B

Warranty 1 year
